Narrow Frame-Embeddable Human Presence Detection mmWave Sensor
Minimalist design meeting the design requirements of narrow frame products. Detect the target in the specified area using FMCW. Perform high-sensitivity human presence detection by integrating radar signal processing and an accurate human detection algorithm. Can detect moving and motionless human bodies.
Features
- Super narrow frame: Space-saving and easy to install
-
Flexible Configurable: Configure parameters for each range gate
-
Disturbance Avoidance: Accurately detect targets within the range and avoid outside interference
-
Regulation Compliant: In accordance with national and international regulations, support quick installation
Characteristics
|
Target Application |
0~6 m （Human presence detection， detection area adjustable) |
|
Operating Frequency |
24~24.25 GHz, FCC/CE compliant |
|
Operating Voltage |
3.3 V |
|
Average Current |
33 mA |
|
Modulation Mode |
FMCW |
|
Hardware Size |
35 mm x 7 mm |
|
Field of View |
120° x 90° |
|
Interface |
UART |
|
Installation Method |
Wall-mounted |
Illustration of Detection Range

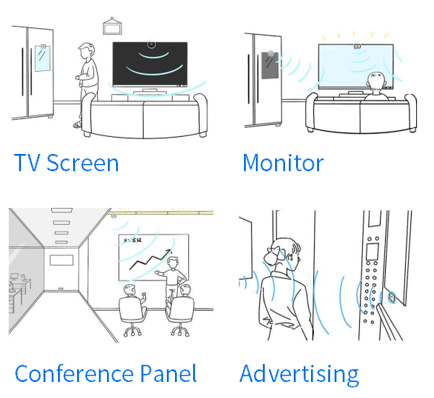

Applicable to Various Scenarios
