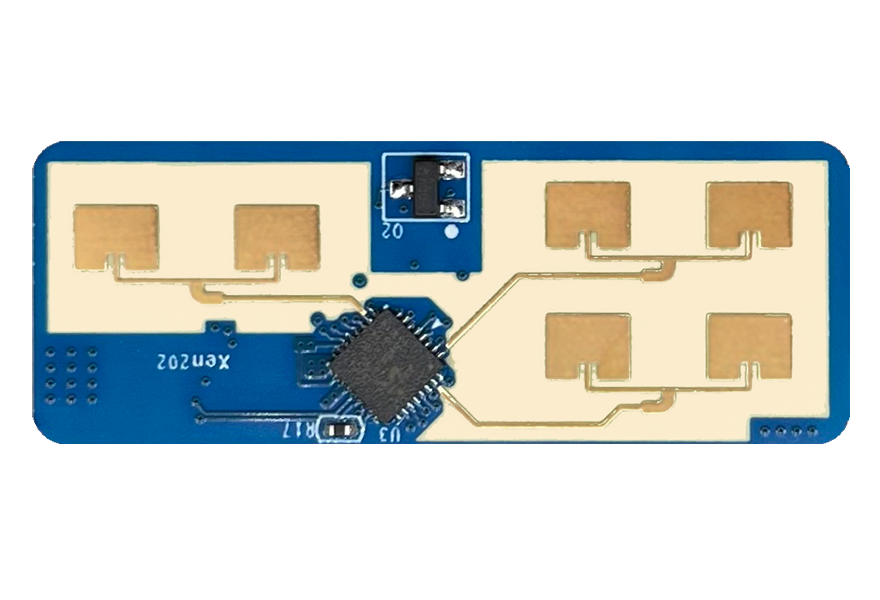

S5KM312CL

1T2R | K-band Smart mmWave Sensors

Overview

S5KM312CL is an ICLM 1T2R smart mmWave sensor SoC features high-performance mmWave DSP, ultra-high detection precision satisfying requirements of various AIoT applications, and over 4GHz sweeping bandwidth providing centimeter level high resolution. S3KM312CL adopts a fully integrated CMOS structure, incorporates a comprehensive mmWave sensor system, provides flexibly configurable waveform, power consumption, and gain, and built-in power management and algorithm accelerator. S5KM312CL supports cascading applications, presenting supreme performance in compact size.



Features

Two integrated Rx channels for 2D positioning.

Wide 4 GHz FMCW bandwidth for high-resolution applications.

Capable of multiple-chip cascading to expand the number of channels.

Compact CMOS design with PLL, TRX and ADC integrated on-chip.

On-chip DSP accelerator, minimalizing off-chip processing resources.

Built-in power management module, supporting 3.3 V single power supply.

Peripheral interfaces including I2C, SPI, UART, etc.



 Key Parameters

Chip ID

S5KM312CL

Channel

1T2R

Bandwidth

4 GHz

TX Max.Power

including ADC

12 dBm

RX Noise Figure

including ADC

10.5 dB

PLL Phase Noise

at 1MHz Offset

-97 dBc

Package

 QFN 4 mm x 4 mm

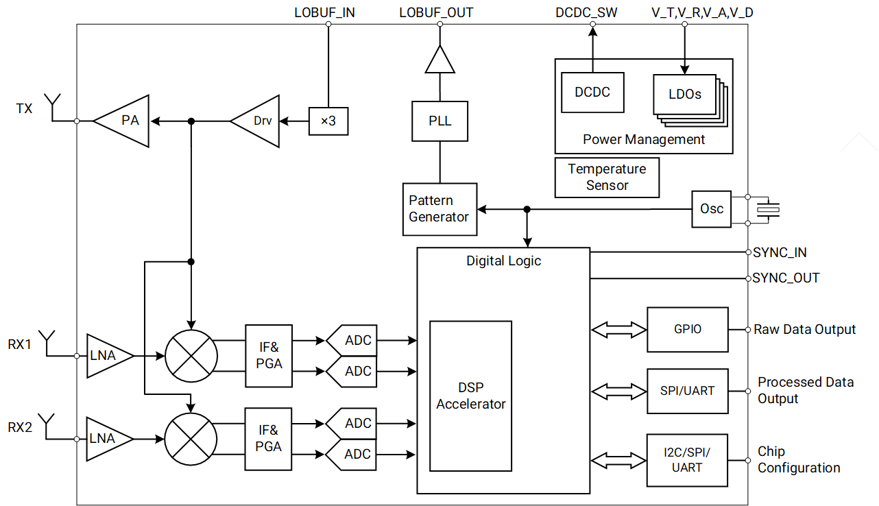

5KM312CL Block Diagram

S5KM312CL Block Diagram 312.png

Document

  • All
  • Introduction
  • DataBrief
  • DataSheet
title category version size last update action
S5KM312CL SoC DM new Introduction 20231205 779.0 KB 20231207 Document
DataBrief_S5KM312CL new DataBrief Rev.1.4 153.3 KB 20240415 Document
Datasheet_S5KM312CL new DataSheet Rev.1.4 1004.6 KB 20231229 Sample
