ICL111A (AiP 1T1R)

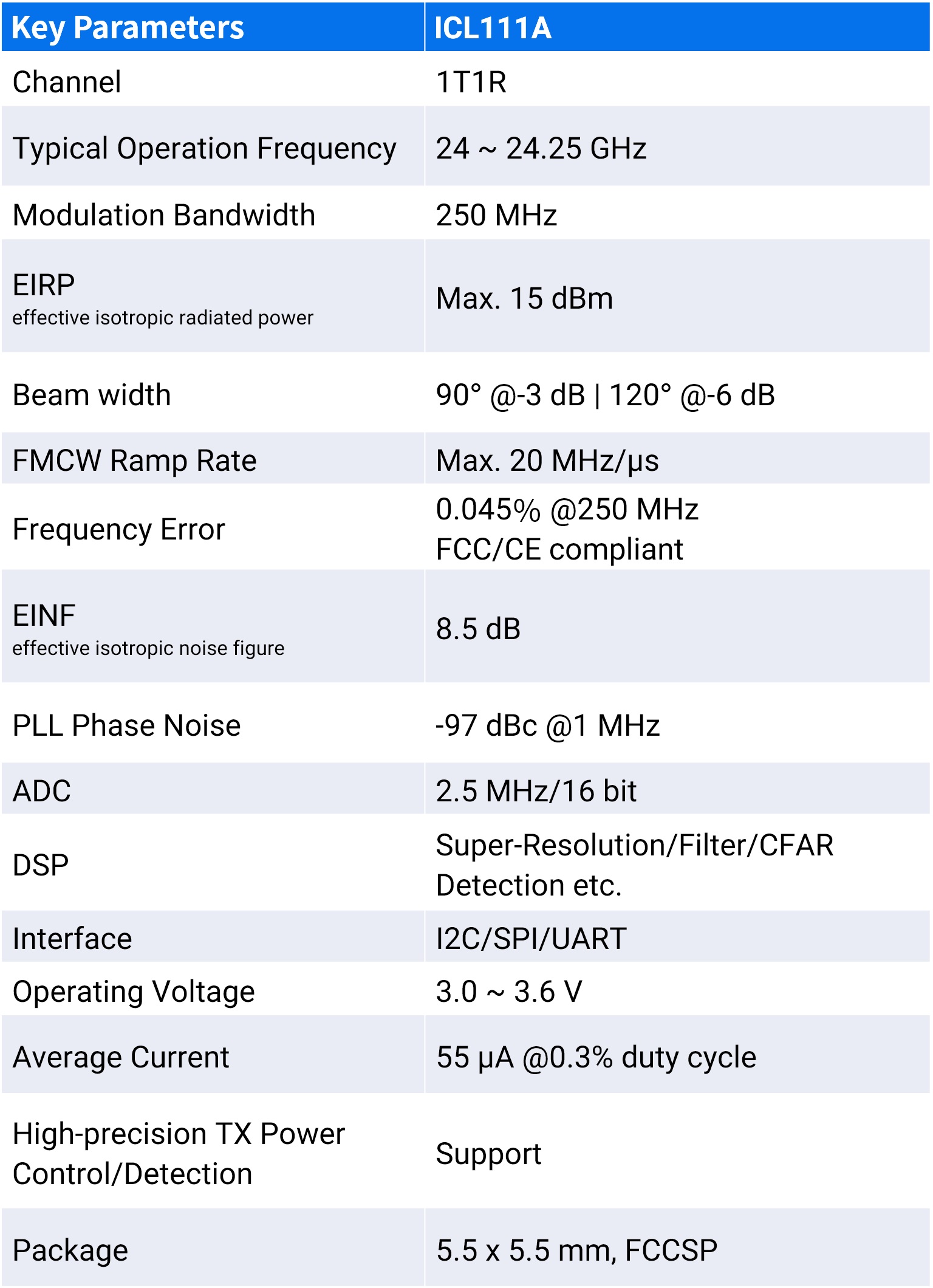

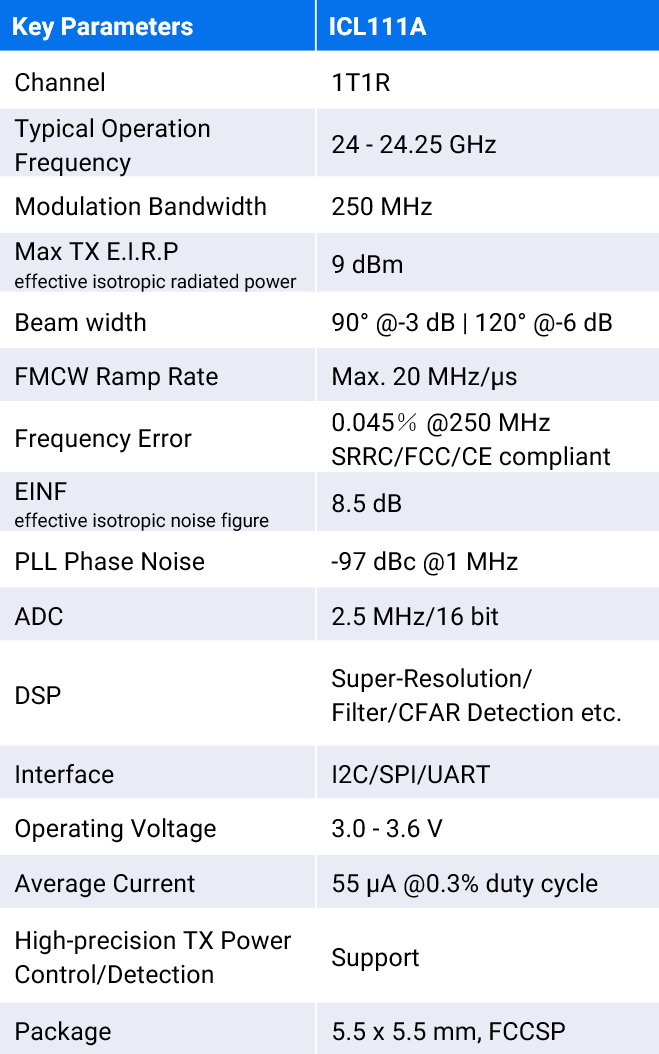

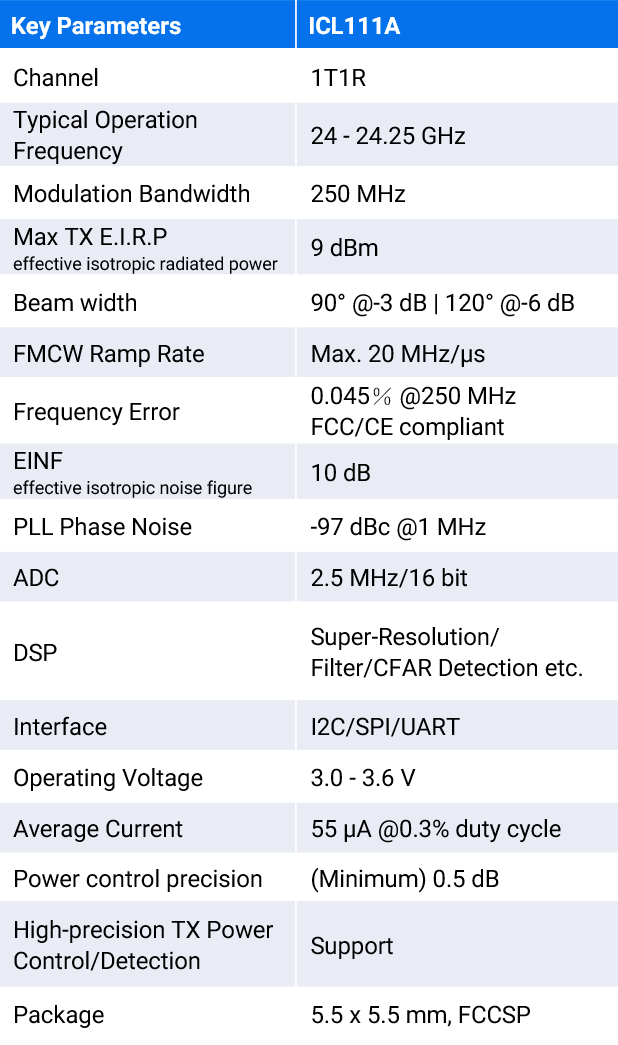

The ICL111A stands as an unique advantageous 24 GHz mmWave AIP sensor SoC with patent protected AIP antenna design and μA-level ultra-low power consumption. This chip presents a fully integrated mmWave sensing solution, consisting of mmWave antenna, full transceiver and signal processing system. ICL111A requires fewer external peripherals, brings much smaller size of sensor modules, provides more convenience for design and production, has better environmental adaptability.



 Features

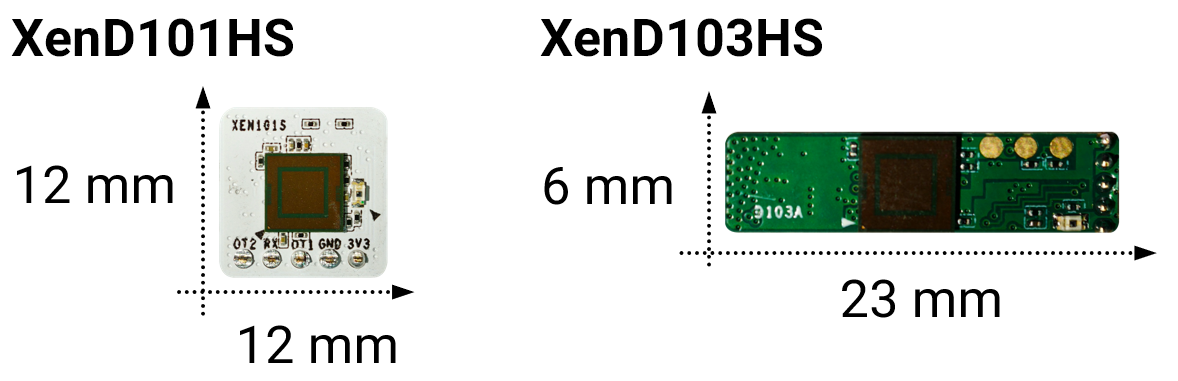

Smaller sensor module size: the sensor module can be as narrow as 6 mm, enabling integration into various compact spaces.

Convenient for design and production: no antenna development or high frequency board processing is required, which significantly shortens time to market.

Good for mass production: no mass production experience of mmWave modules is required, which enables the rapid mass production.

Supper low power consumption: capable of μA-level battery-powered operation







 ICL111A Block Diagram



Applicable to Various Scenarios

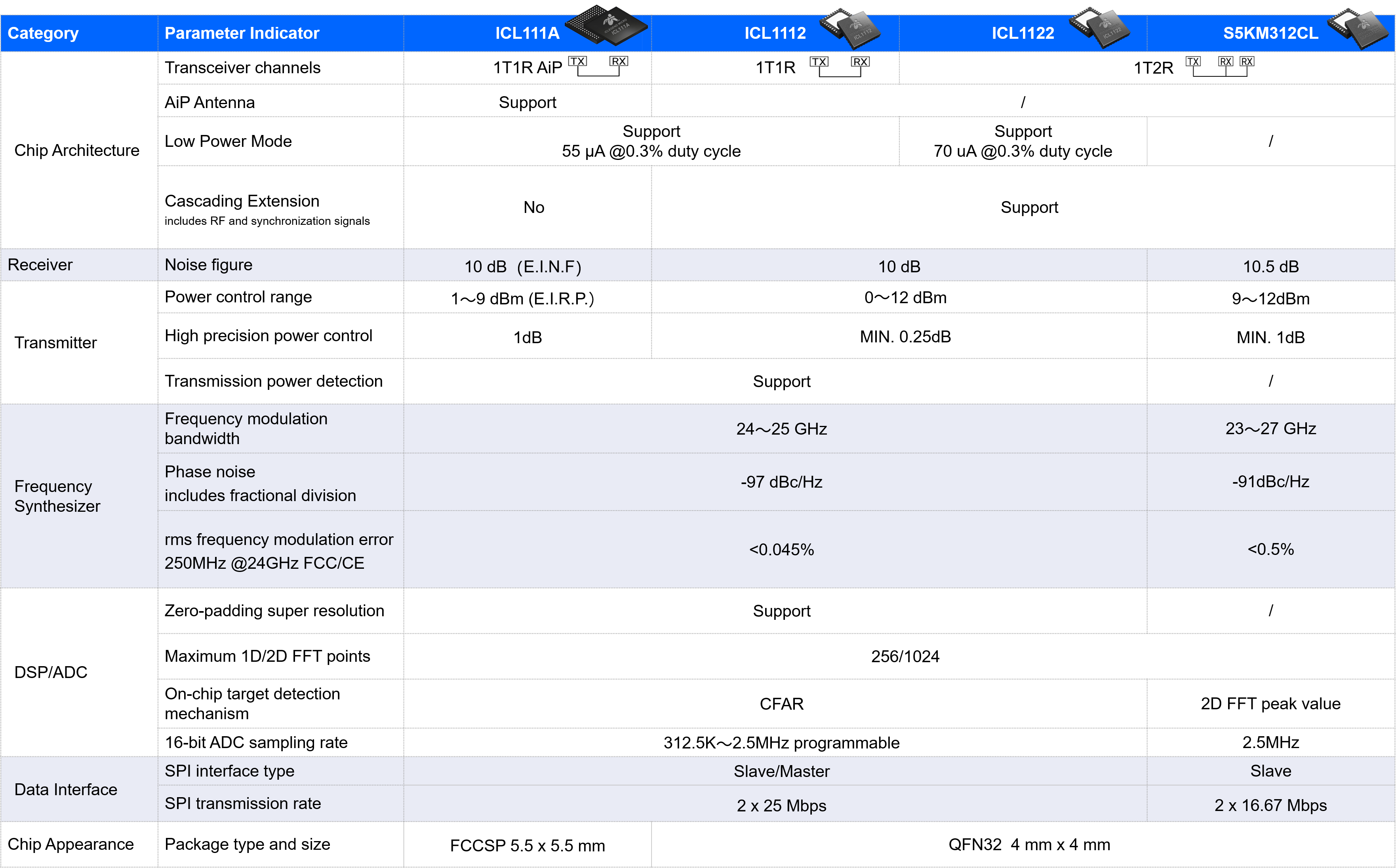

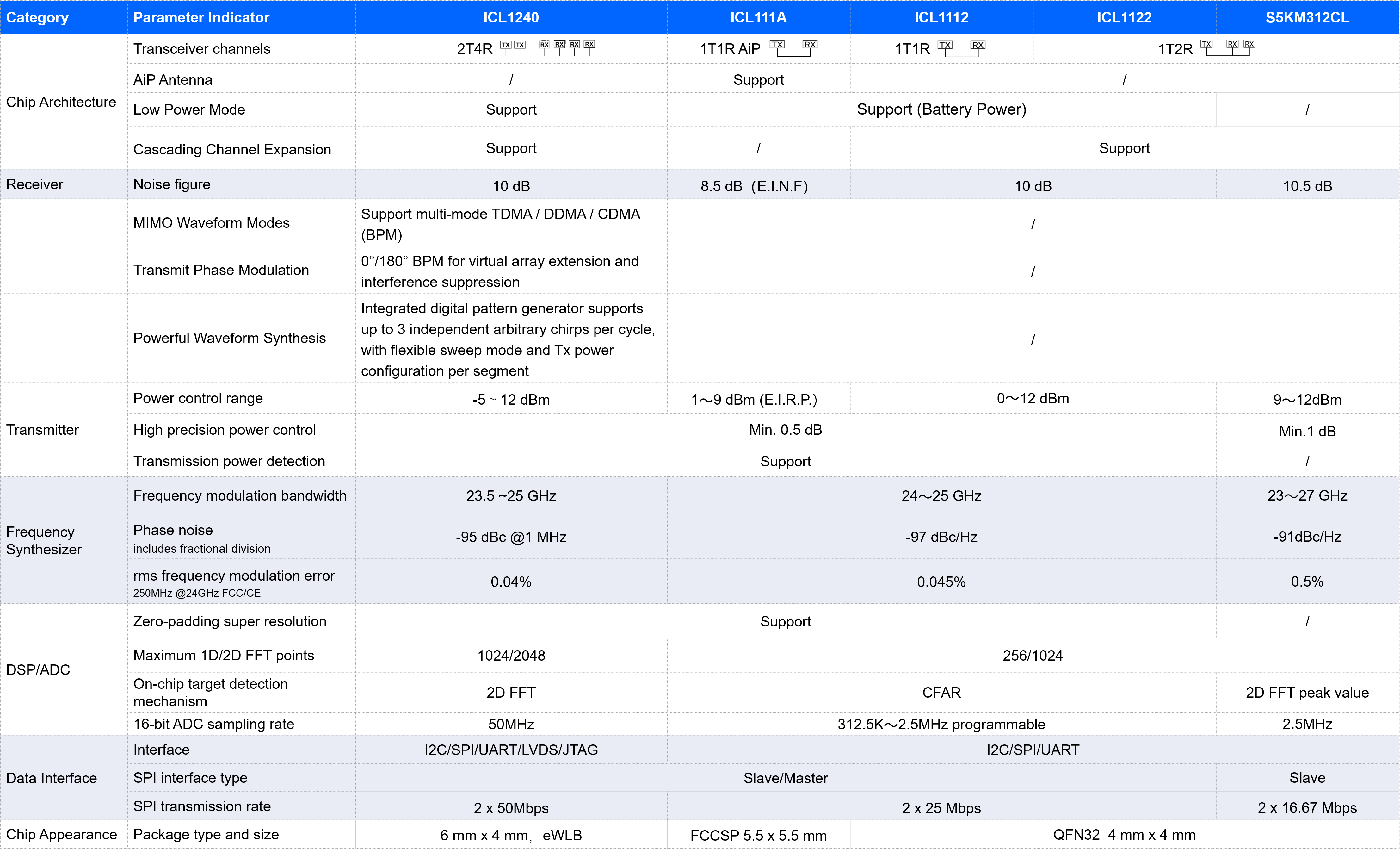

Model Selection Table

Document

TITLE CATEGORY VERSION SIZE PUBLISH TIME ACTION
ICL Product Brochure2026.10
Brochure V1.0 7.8 MB 20260714 Document
DataBrief_ICL111A
DataBrief Rev.0.3 151.9 KB 20250903 Document
DS10009DN_ICL111A
DataSheet Rev.1.0 1.3 MB 20251111 Sample
AN10009N_SoC Temperature Detection Module
Application Note Rev.1.3 257.6 KB 20260319 Sample
AN10038N_SoC Chip ADC Saturation Detection Function Introduction
Application Note Rev.1.2 224.1 KB 20260624 Sample
AN10041N_ICL111ACarrier Board Hardware Design Guide
Application Note Rev.1.0 651.5 KB 20260319 Sample
