XenG101GS AiP Hand Wave Gesture Recognition (Counting) mmWave Sensor

XenG101GS is a 24GHz AiP mmWave gesture-sensing reference design built around the ICL111A chip, integrating hand-wave recognition and human proximity wake-up functions. Based on FMCW technology and target recognition algorithms, it accurately detects hand wave gestures (1~20 cm) and measures human distance (0.2 ~ 4 m). It enables proximity-based wake-up and gesture control for smart devices, making it ideal for applications such as smart displays, smart home systems, smart appliances, and smart kitchen and bath products.



Features

  • Gesture recognition: Non-contact control with high-precision hand wave detection.
  • Convenient Development: Integrated human sensing and distance measurement function with multi-parameter configuration.
  • Accurate Ranging: Human distance measurement accuracy of ±20 cm with configurable sensing range.
  • Interference Shielding: Precisely defined gesture recognition zone to block out interference beyond the designated area.





Illustration of Detection Range



Visualization Tools

G101G

G101G GUI2

Visualisation Tool for Hand Gesture Recognition



Applicable to Various Scenarios

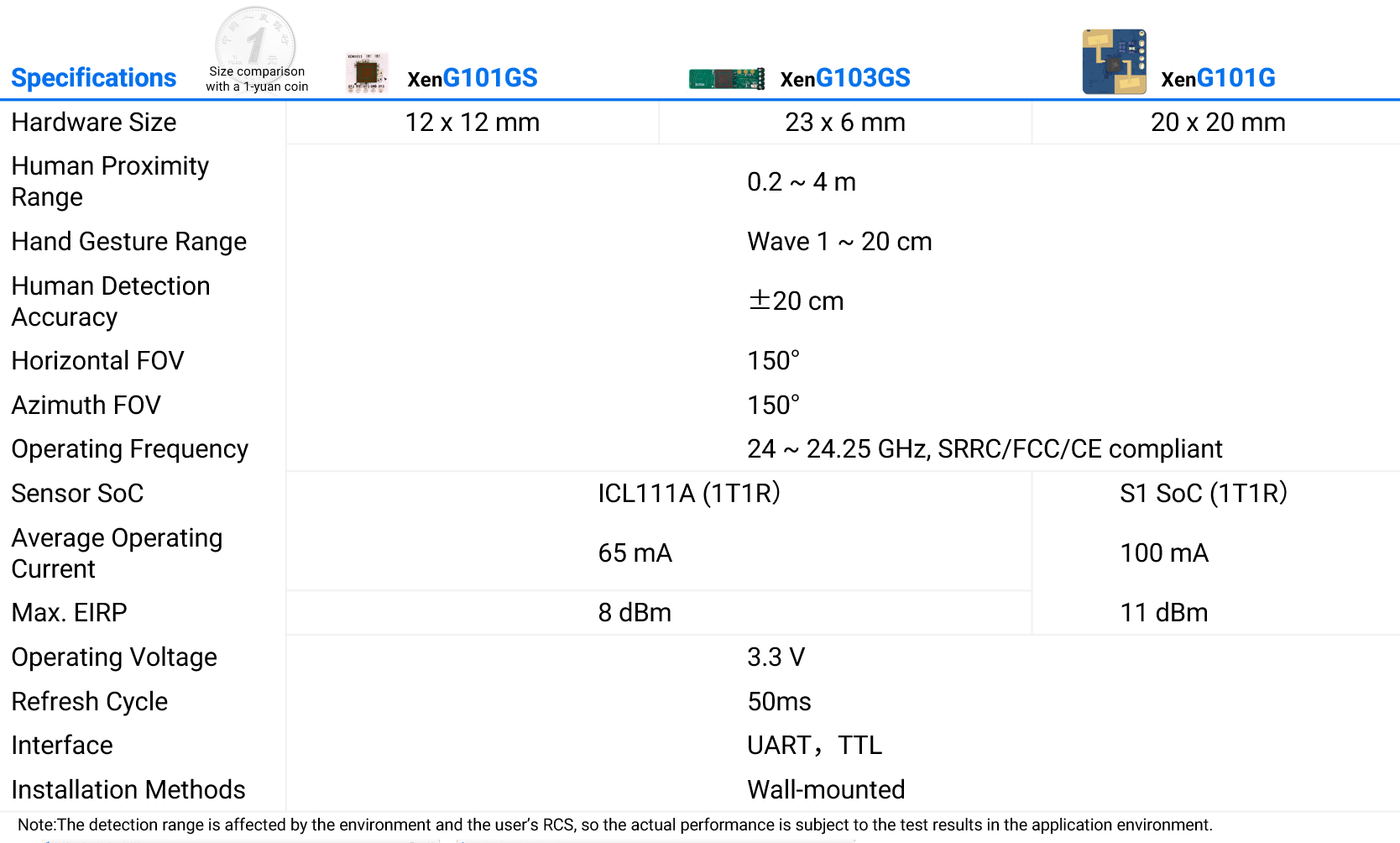

Model Selection Table

Document

TITLE CATEGORY VERSION SIZE PUBLISH TIME ACTION
ICL Product Brochure2026.10
Brochure V1.0 7.8 MB 20260714 Document
Product Specifications_XenG101GS_XenG103GS Product Specifications
Product Specification Rev.1.0 182.5 KB 20260720 Sample
Application Note_mmWave Sensor Radome Design Guide
Application Note Rev.1.1 1.1 MB 20260319 Sample
User Manual_XenG101GS_XenG103GS User Manual
User Manual Rev.1.0 1.2 MB 20260720 Sample
PCB Layout_XenG101GS
PCB Rev.1.0 732.7 KB 20261009 Sample
Schematics-XenG101GS
Schematics Rev.1.0 67.1 KB 20261009 Sample
