High-Precision Human Range Measurement mmWave Sensor
High-precision human detection and range measurement using FMCW radar SoC and high gain antennas. Incorporated with signal processing algorithms, reports real-time accurate human distance. Support human micro-motion/motion detection, independent detection area configuration, and resist interference outside of the detection range.
Features
-
High-precision Range Measurement: Real-time cm-level ranging accuracy
-
Flexible Configurable: Configurable micro-motion/motion detection for various scenarios
-
Wide-range Detection: Accurate human range measurement up to 7 m
-
Convenient Installation: Support low-effort wall-mounted installation
Specifications
|
Detection Range |
0.3~7 m |
|
Range Accuracy |
± 3 cm (0.3~6m) ± 2% (6~7m) |
|
Operating Frequency |
24~24.25 GHz, FCC/CE compliant |
|
Operating Voltage |
5 V |
|
Average Operating Current |
51 mA |
|
Sensor SoC |
S3 series (1T1R) |
|
Hardware Size |
28 mm x 24 mm |
|
Field of View |
80° x 40° |
|
Interface |
UART, GPIO |
Illustration of Detection Range

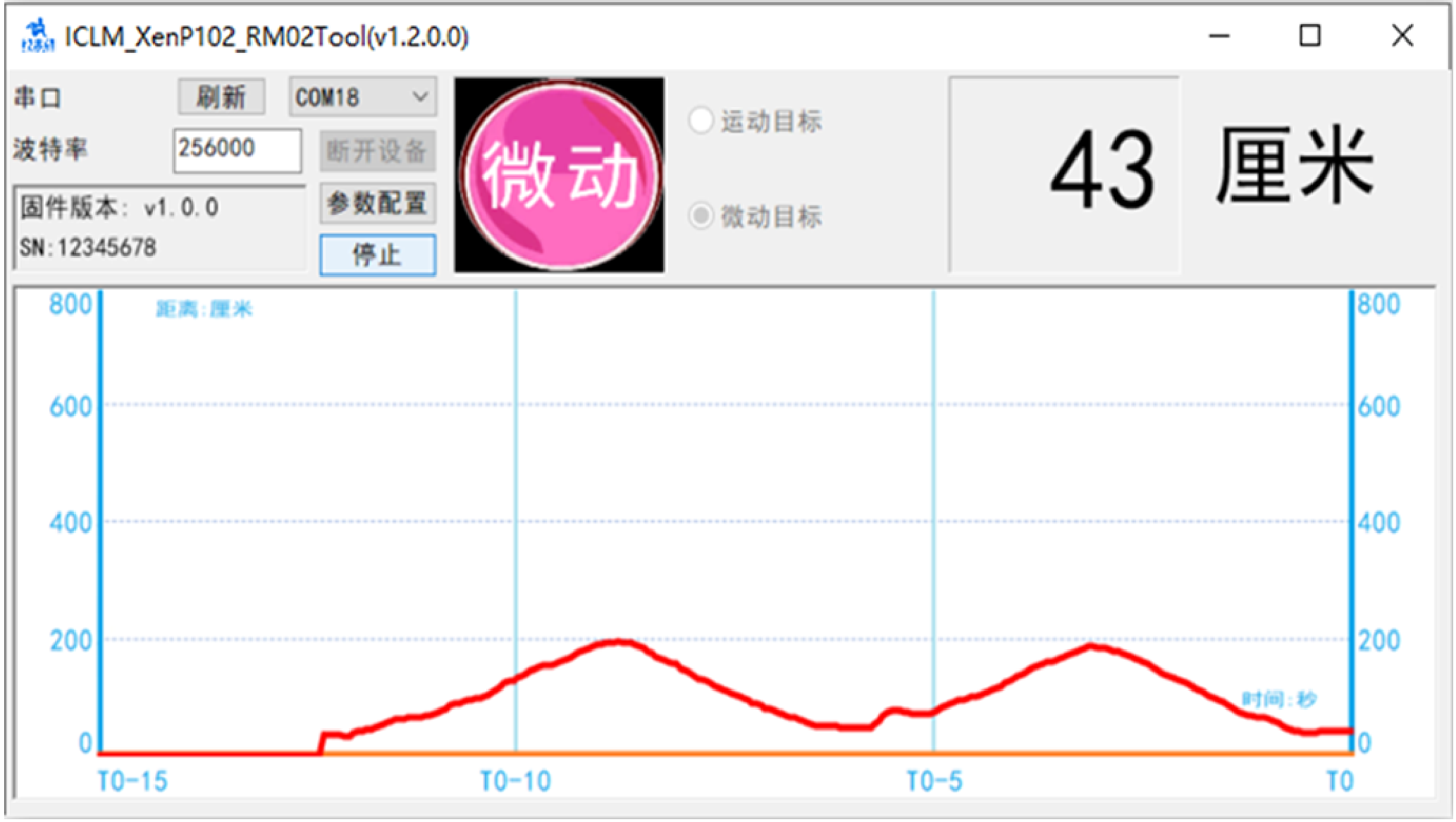

Human Detection and Range Measurement Visualization Tool
Applicable to Various Scenarios
