Battery-Powered Human Presence Detection mmWave Sensor
Powered by ICLEGEND MICRO mmWave sensor SoC ICL1112, together with highly accuracy human presence detection algorithm, the XenD106L provides the ability of detecting moving/micro moving or stationary sitting / stationary lying human within reconfigurable detection area and reports the real-time human target position under μA-level operating current. The ultra-low energy operation can be powered by button batteries over years. It is suitable for standalone human presence sensor, smart small appliances, and doorbell & door lock alarm system.
Features
- Ultra-Low Power: μA-level current for long battery life
- Human Life Detection: Moving, micro-moving, stationary sitting and stationery lying human status distinguishable
- Wider Coverage: Broad detection for stable sensing within the target zone
- Flexible Usage: Battery-powered, compact size for easy integration
- Effortless Deployment: Auto-generated parameter configuration for quick adaptation to diverse scenarios
- Worry-free Manufacturing: Easy-to-use supporting resources for quick mass production
Specifications
|
Detection Range |
0 ~ 6 m motion and micro-motion 0 ~ 4 m stationary sitting and lying detection range configurable |
|
Operating Frequency |
24 ~ 24.25 GHz，FCC/CE/SRRC compliant |
| Operating Voltage |
3.3 V |
| Typical Operating Current |
56 μA |
|
Detection Delay Time |
250 ms |
|
Sensor SoC |
ICL1112（1T1R SoC） |
|
Hardware Size |
20 mm x 20 mm |
|
Detection Angle |
60° x 60° |
|
Interface |
UART, GPIO |
|
IAP Function |
In-application programming (IAP) using UART |

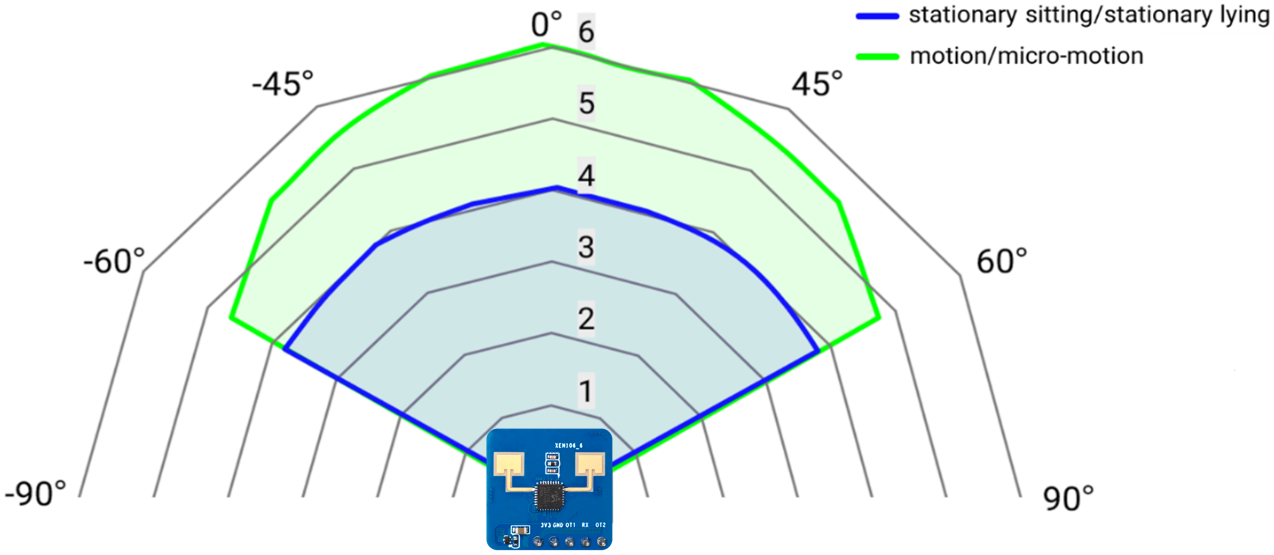

Illustration of Detection Range

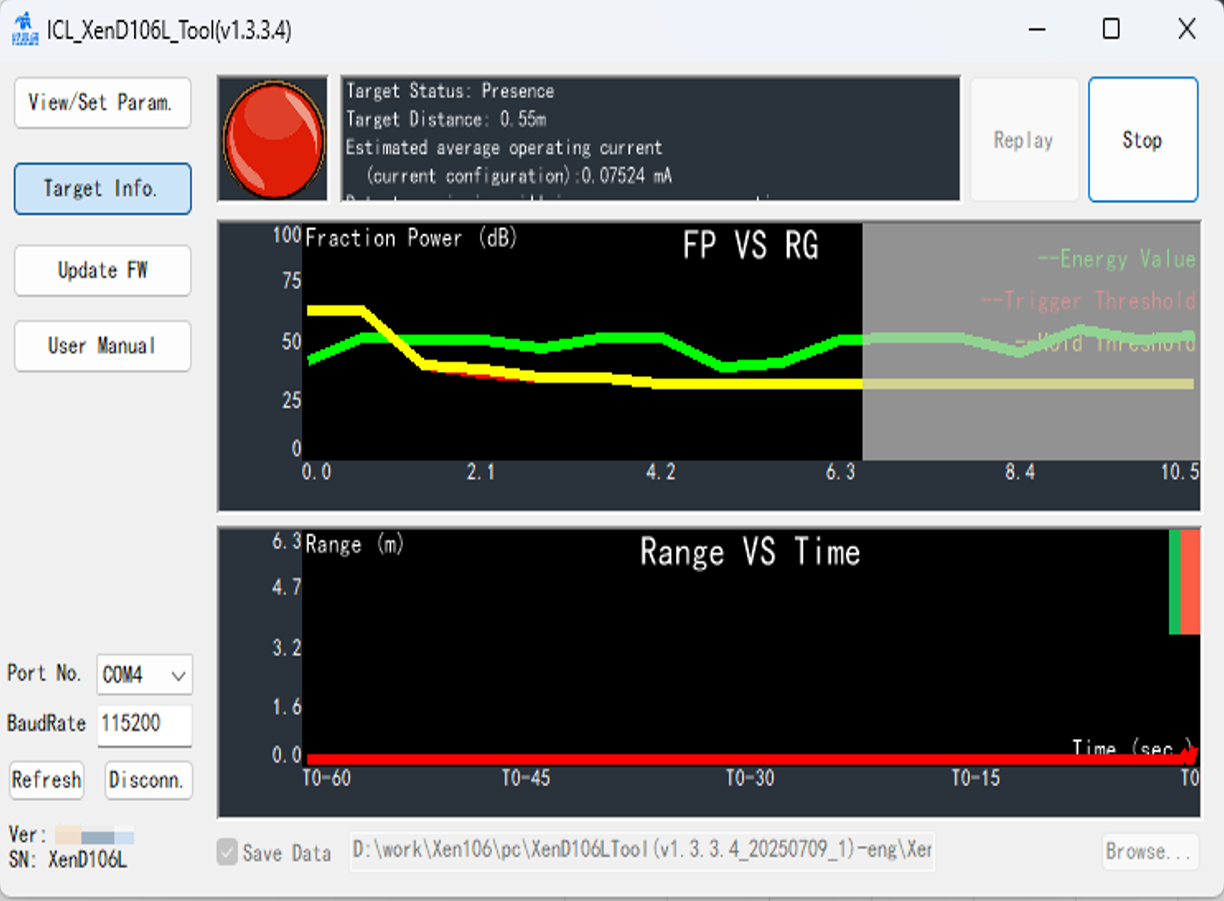

Visualization Tool
Visualization Tool for Ultra-Low Power Human Presence Detection
Applicable to Various Scenarios
EZ-XENSOR Product series | Selection Table
| title | category | version | size | last update | action |
|---|---|---|---|---|---|
| GUI_XenD106LTool_v1.3.3.4 |
