Wide-Area Human Presence Detection mmWave Sensor

The XenD101 series features a 1T1R SoC（optional AiP SoC). Adopting FMCW technology, it integrates human presence sensing and ranging functions, reliably detecting stationary, reclining and sleeping occupants. Its wide-beam antenna design delivers extensive coverage, ideal for large spaces such as living rooms, meeting rooms and public areas. Compatible with ceiling and wall mounting, it supports independent sensitivity adjustment per zone and automatic parameter generation. Suited for Smart Lighting, Home Appliances, Security and Energy-saving applications, it achieves accurate detection of stationary human presence.

Features

• Long-Range Sensing: Up to 11 m detection range,stationary/micro-motion/motion

• Ultra-Compact Size: 12 mm ultra-miniature size, ultra-compact design

• Precise Detection: Stationary/lying/sleeping, human presence

• Easy Integration: On-chip antenna, fast design & production (AiP Series)

• Cost-Effective: Efficient algorithms, cost-effective performance

• Easy Deployment: Auto parameters, fast scenario adaptation

• Enhanced Durability: Highly resistant, Wide temp range (AiP Series)

• Mass Production Ready: User-friendly tools, fast mass production

• Scenario Optimization: Integrated features, ready to use

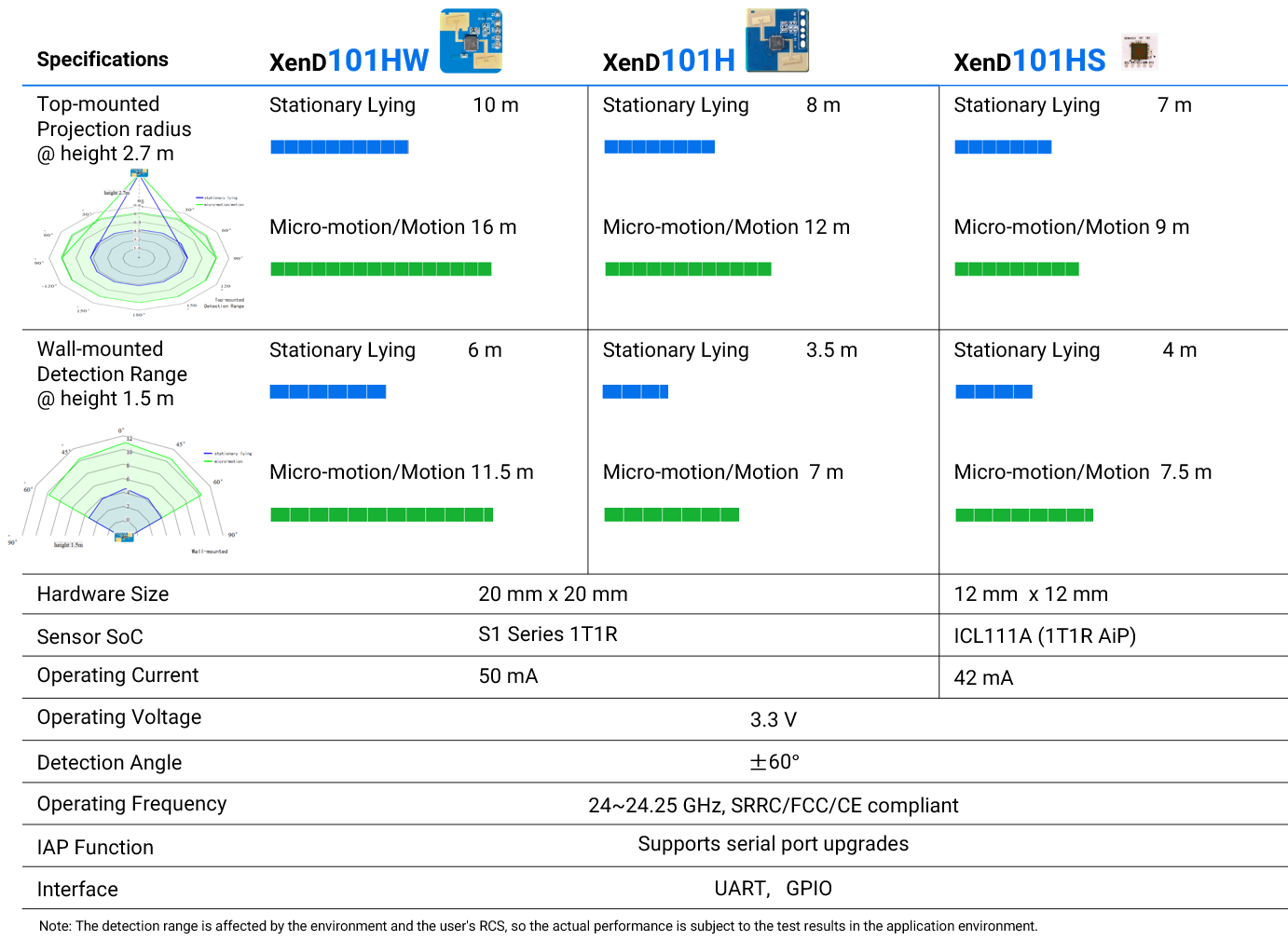

Specifications

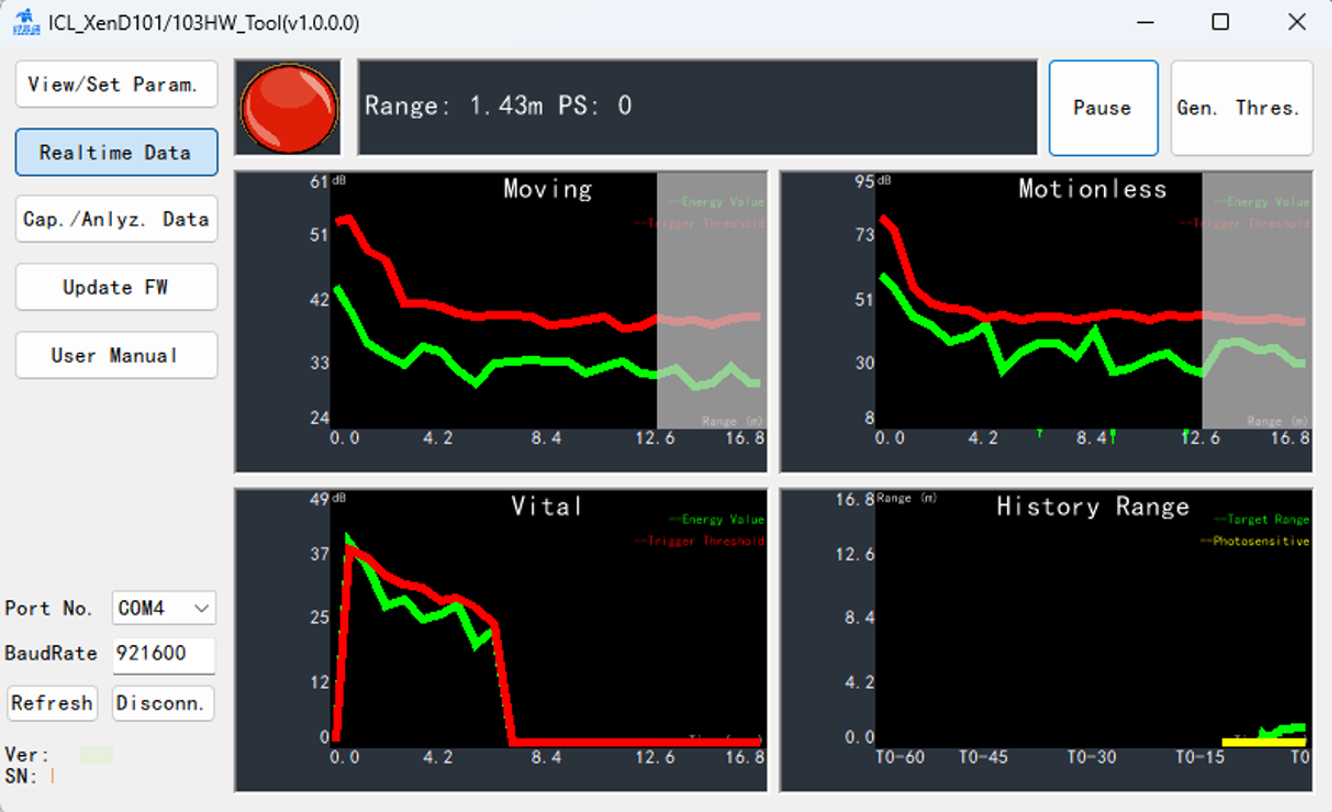

Human Presence Detection Demonstration Tool

Applicable to Various Scenarios
