EVBKS5-E | ICL1122 SoC Evaluation Board With wide Bandwidth Antennas
The EVBKS5-E, equipped with the ICL1122 SoC, 1T2R wide bandwidth antennas, and ARM Cortex-M4 MCU, is designed to streamline the evaluation of SoC performance for developers. This advanced platform automatically generates SoC register configurations tailored to mmWave sensor parameter settings, simplifying the development process. It empowers developers to effortlessly craft algorithms for a wide range of applications by providing real-time data gathering and analysis capabilities. Additionally, the EVBKS5-E offers multiple intuitive application demonstrations, including human presence detection and multi-human tracking.
Features
Complete hardware system: Integrated 1T2R mmWave SoC, wide bandwidth antennas, high-performance MCU, and high rate USB Type-C interface.
Agile developing tools: Comprehensive SoC evaluation system, intuitive radar configuration and real-time signal waveform analysis tools.
Diverse user experience: Built-in typical application demos, i.e. human presence detection and multi-human tracking.
Specifications
|
Operating Frequency |
24 GHz |
|
Sweeping Bandwidth |
24~25 GHz (reconfigurable) |
|
Equivalent Isotropic Radiated Power |
16 dBm (reconfigurable) |
|
Operating Voltage |
5 V |
|
Sensor SoC |
ICL1122(1T2R) |
|
Hardware Size |
43 mm x 41 mm |
|
Field of View (6 dB beamwidth) |
115° x 114° |
|
IAP Function |
In-application programming (IAP) using UART |
Power supply and interfaces
Support UART/USB Type-C/ I/O interface communication
Maximum data transfer rate 34 Mbps
Support debugging and programming via SWD
Support USB power supply (default) or external power supply via J1
Visualization Tools

Applicable to various scenarios

Design
| TITLE | CATEGORY | VERSION | SIZE | PUBLISH TIME | ACTION |
|---|---|---|---|---|---|
| mmWave Sensor Development Tool | ONELAB Development Tool | 1.5.4.2 | 124.0 MB | 20261022 | View |

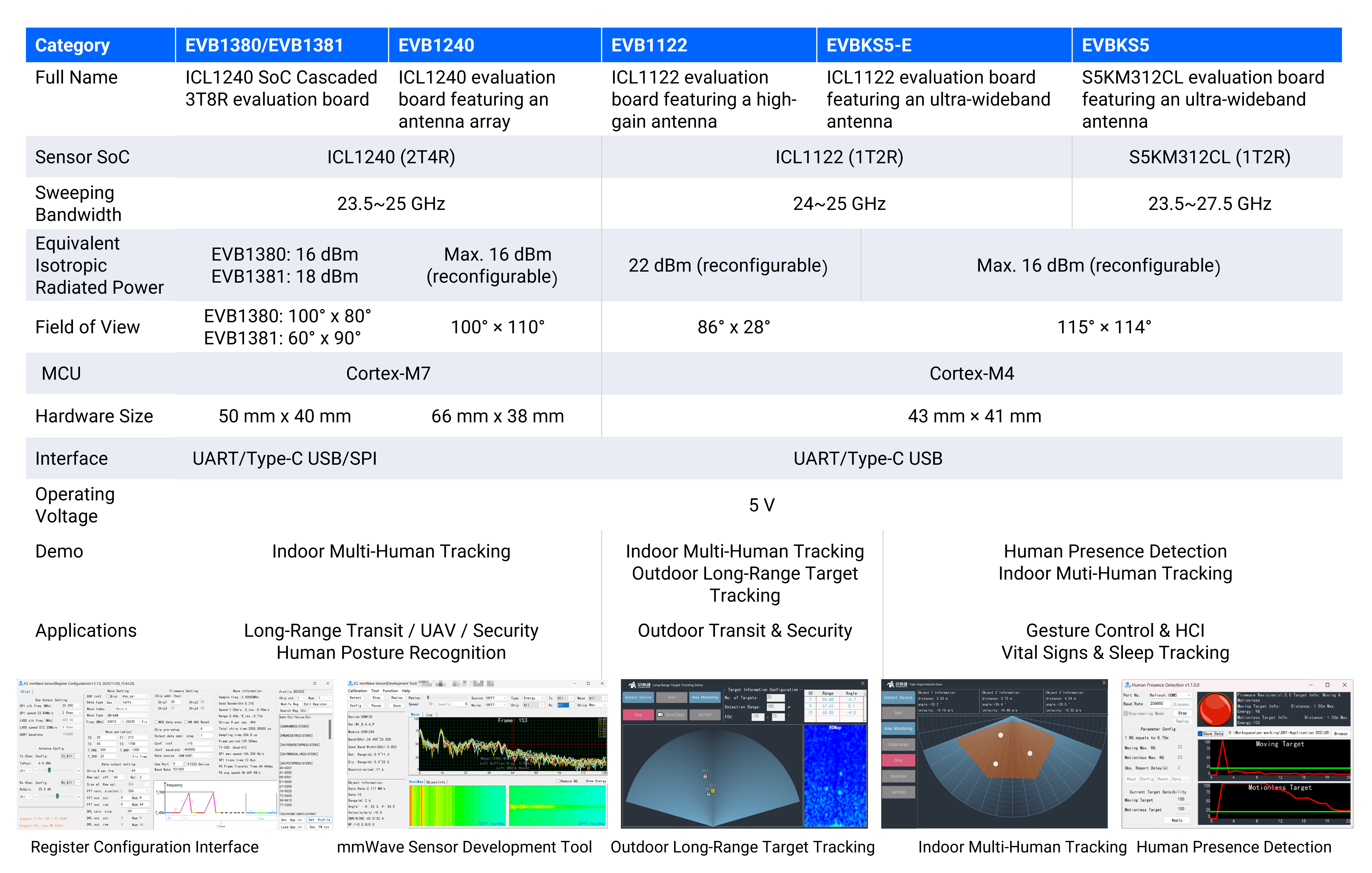

Model Selection Table
Document
| TITLE | CATEGORY | VERSION | SIZE | PUBLISH TIME | ACTION |
|---|---|---|---|---|---|
|
ICL Product Brochure2026.10
|
Document | ||||
|
DS10012RN_ICL1122
|
Sample | ||||
|
AN10035N_ICL1122 Hardware Design Guide
|
Sample | ||||
|
AN10038N_SoC Chip ADC Saturation Detection Function Introduction
|
Sample | ||||
|
AN10024P_mmWave Sensor Radome Design Guide
|
Sample | ||||
|
AN10011N_S5KM312CL_ICL1112_ICL1122_ICL111A_CW Speed Radar Reference Design Note
|
Sample | ||||
|
AN10009N_SoC Temperature Detection Module
|
Sample | ||||
|
AN10013N_Multi-channel phase Calibration method
|
Sample | ||||
|
AN10030N_Tuning Methods for Maximum Available Transceiver Link Gain
|
Sample | ||||
|
AN10040N_ICL1112_ICL1122_ICL111A Low-Power Operation Guide
|
Sample | ||||
|
UM10022P_EVBKS5-E User Manual
|
Sample | ||||
|
UM10060P_mmWave Sensor Waveform Tool User Manual
|
Sample | ||||
|
Schematics_EVBKS5-E
|
Sample |
