Overview
Hand Wave Gesture Recognition mmWave Sensor
XenG101G is a high-precision 24GHz mmWave sensor reference design, integrating hand wave recognition and human proximity wake-up functionality. Based on FMCW technology and target recognition algorithms, it accurately detects hand wave gestures (1 ~ 20 cm) and measures human distance (0.2 ~ 4 m). It enables proximity-based wake-up and gesture control for smart devices, making it ideal for applications such as smart displays, smart home systems, smart appliances, and smart kitchen and bath products.
Features
- Gesture recognition: Non-contact control with high-precision hand wave detection.
- Convenient Development: Integrated human sensing and distance measurement function with multi-parameter configuration.
- Accurate Ranging: Human distance measurement accuracy of ±20 cm with configurable sensing range.
- Interference Shielding: Precisely defined gesture recognition zone to block out interference beyond the designated area.
Specifications
|
Human Proximity Range |
0.2 ~ 4 m |
|
Hand Gesture Range |
Wave 1 ~ 20 cm |
|
Human Detection Accuracy |
±20 cm |
|
Horizontal FOV |
150 ° |
|
Azimuth FOV |
150 ° |
|
Operating Frequency |
24 ~ 24.25 GHz, FCC/CE compliant |
|
Operating Voltage |
3.3 V |
|
Average Operating Current |
100 mA |
|
Max. EIRP |
11 dBm |
|
Refresh Cycle |
50 ms |
Illustration of Detection Range
Visualization Tools

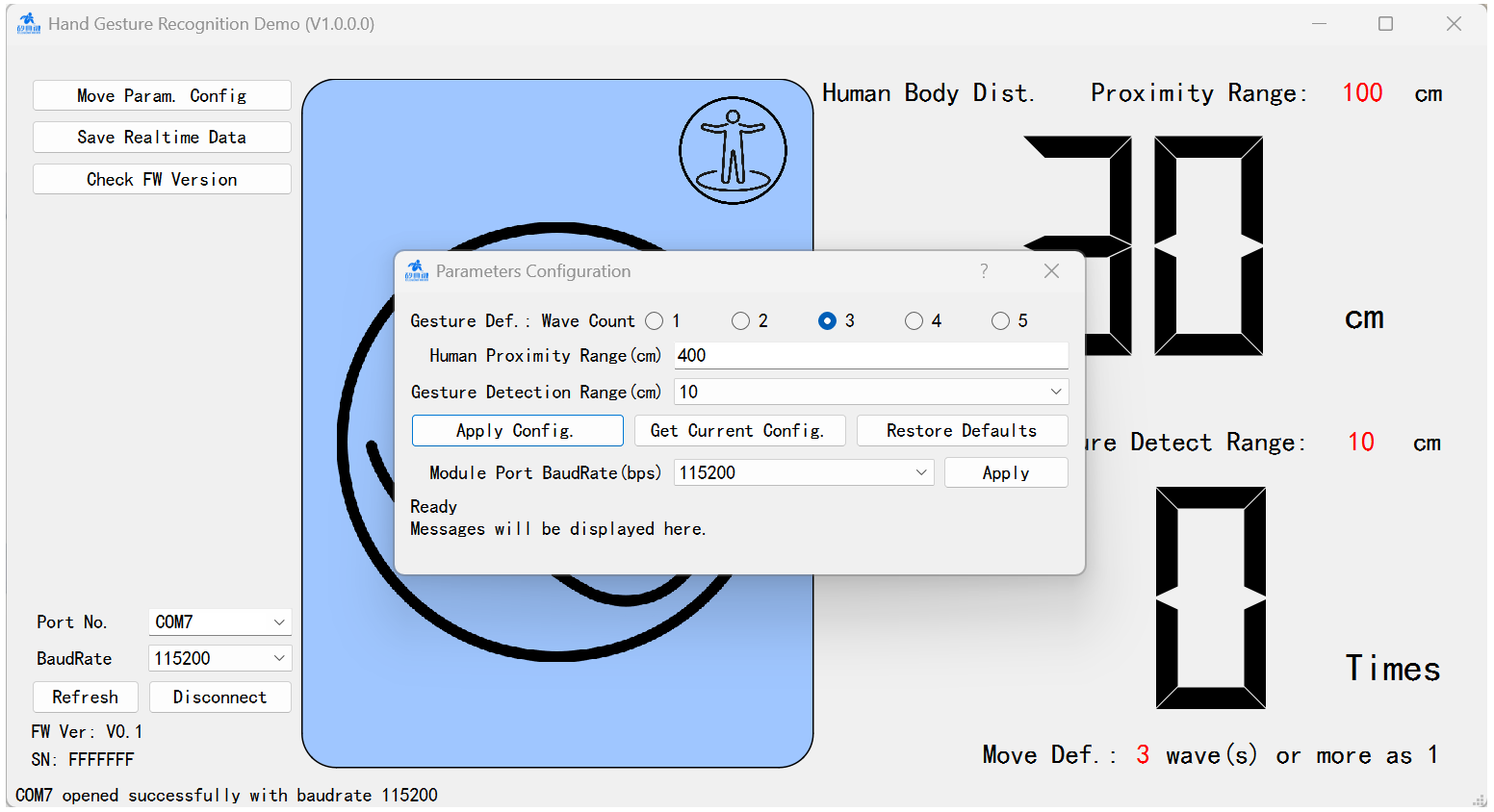

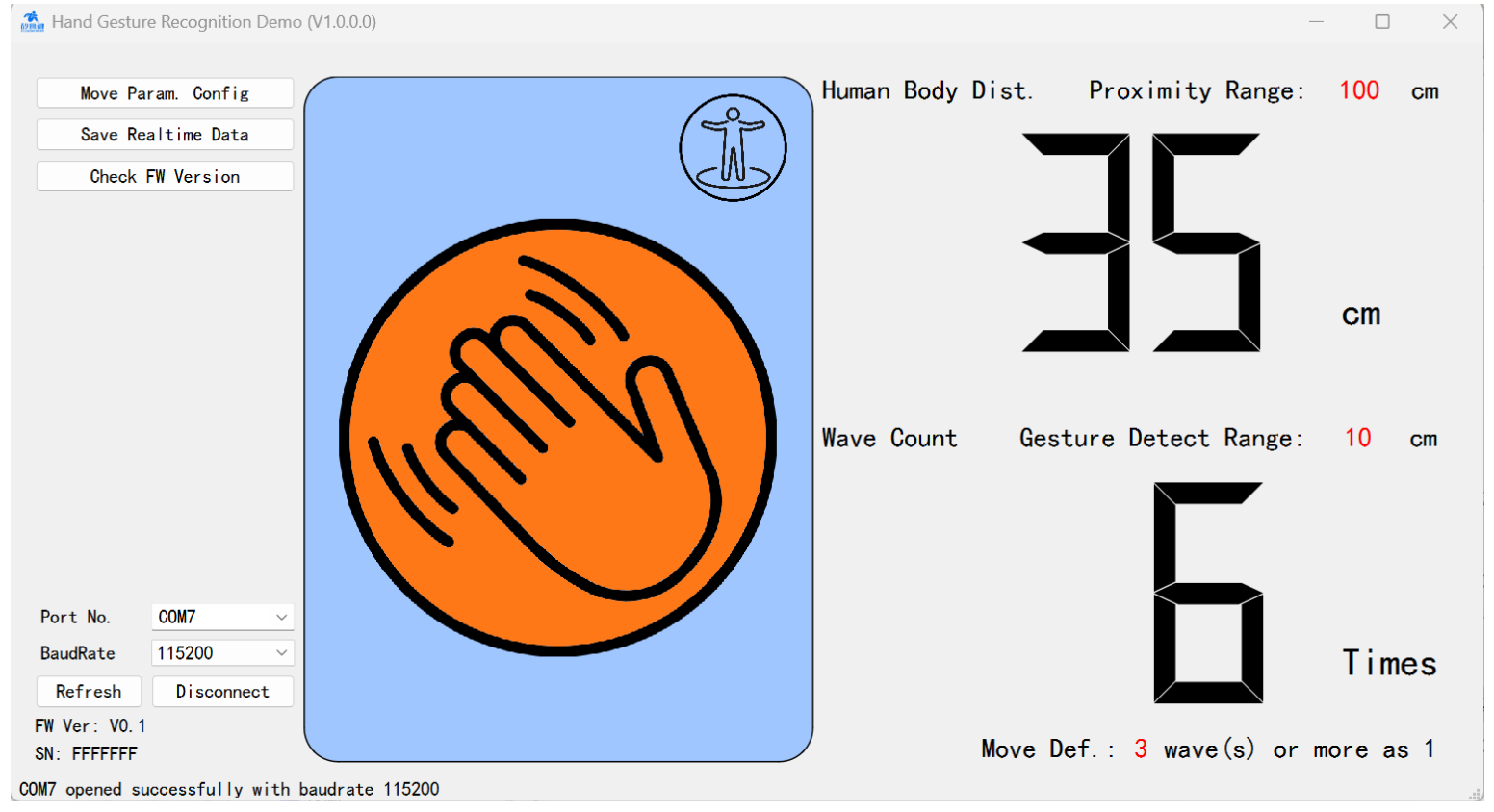

Visualisation Tool for Hand Gesture Recognition
Applicable to Various Scenarios
Document
- All
- Introduction
- DataSheet
- User Manual
| title | category | version | size | last update | action |
|---|---|---|---|---|---|
| XenG101G DM new |
| title | category | version | size | last update | action |
|---|---|---|---|---|---|
| XenG101G Product Specifications new |
| title | category | version | size | last update | action |
|---|---|---|---|---|---|
| XenG101G User Manual new |
