Overview
Miniaturized High-precision Liquid Level and Position Detection mmWave Sensor
——
XenP108Y is a compact high-precision liquid level and position detection sensor reference design developed based on the ICL S5KM312CL SoC. The sensor utilizes miniaturized narrow-beam antennas, ultra-wideband FMCW waveforms, along with proprietary radar signal processing and an embedded high-precision liquid level and position detection algorithm. This combination enables millimeter-level accurate detection of target distances within a specified area, with real-time reporting of results. With this reference design, users can swiftly develop compact and high-precision liquid level detection sensing products.
Features
- Wide Range, High Precision: The detection precision within the range of 0.15 to 10 meters is 0.03~0.15 millimeters.
- Energy-efficient and Easy to Adapt: Low operating current reduces power consumption and heat generation.
- Compact and Easy to Deploy: Small size for convenient installation.
- Flexible and Easy to Develop: Real-time reporting of results with configurable parameter settings.

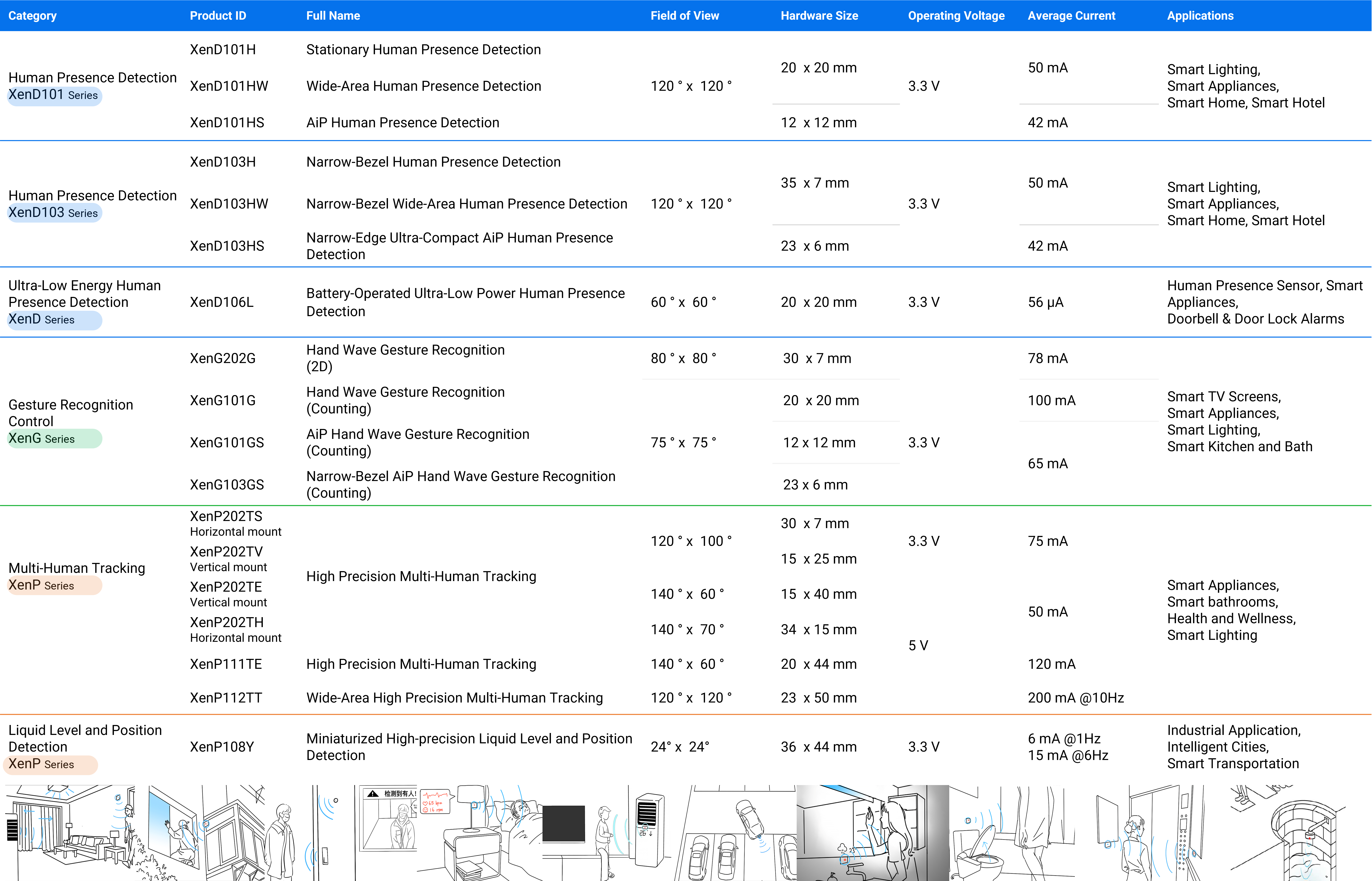

Specifications
| Detection range | 0.15~10 m |
| Accuracy | 0.5 mm |
| Precision | 0.03~0.15 mm |
| Operating Frequency | 23~27 GHz |
| Operating Voltage | 3.0~3.6 V |
| Average Current |
6 mA (report period: 1 s) 15 mA (report period: 160 ms) * refer to section 9.5 of UM10036P. |
| Sensor SoC | S5KM312CL |
| Hardware Size | 44 mm×36 mm |
| Beam Width | ±12° ( -6 dB, round trip) |
| Interface | UART |
| IAP Function | In-application programming (IAP) using UART |
Visualization Tool
Liquid level and position detection demonstration tool
Real-time display of distance history curves and detection waveforms
Recommended Installation Illustration
Applicable to Various Scenarios
Design
| title | category | version | size | last update | action |
|---|---|---|---|---|---|
| GUI_XenP108Y Tool_V1.0.1.0 |
