EVBKS5 | S5KM312CL SoC evaluation board with wide bandwidth antennas
Compute and output the range, angle, speed, and moving direction of the detected target with wide bandwidth antennas and FMCW. Provide a quick way to evaluate the chip performance, easy to develop customized algorithms, applicable to various applications.
Features
Highly integrated: 1T2R mmWave sensor SoC
Minimalist design: Friendly GUI and development platform
Comprehensive functions: Provide a complete chip-evaluation system
Flexibly configurable: Provide easy-to-use system configurations for function tests
Specification
|
Operating Frequency |
23.5 ~ 27.5 GHz |
|
Sweeping Bandwidth |
Max. 4 GHz (adjustable） |
|
Equivalent Isotropic Radiated Power |
16 dBm (reconfigurable） |
|
Operating Voltage |
3.3 V or 5 V |
|
Sensor SoC |
S5 series (1T2R) |
|
Hardware Size |
43 mm x 41 mm |
|
Field of View |
80 ° x 90 ° |
|
IAP function |
upgradeable |
Power Supply and Interfaces
Support UART/ USB Type-C communication
Max. transfer rate 34 Mbps
Support debugging and programming via SWD
Support two ways of power supply

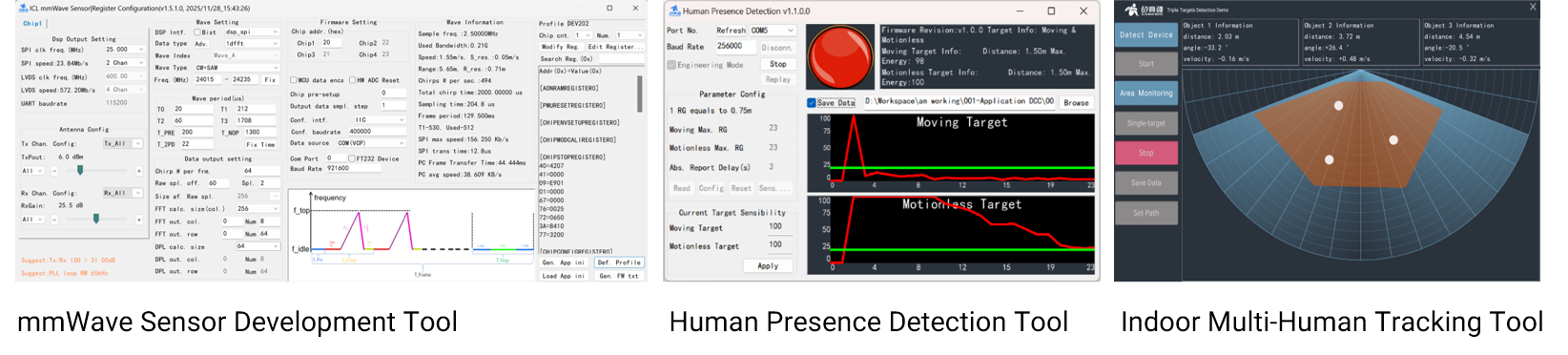

Visualization Tools
| title | category | version | size | last update | action |
|---|---|---|---|---|---|
| mmWave Sensor Development Tool | ONELAB Development Tool | 1.5.2.0 | 124.0 MB | 20260123 | View |
