Smart Toilet Gesture Recognition mmWave Sensor
Embedded with high-precision range detection algorithm, XenG102ST reports detection results in real-time with elevated anti-interference ability. The minimalist size makes it convenient to design end products. Providing multiple gears of detection ranges, XenG102ST meets the detection requirements of variable scenarios.
Features
-
Gesture Recognition: Non-contact control, intelligently recognize hand gestures
-
Range Measurement: Support accurate detection range configuration, range accuracy ±10 cm
-
Interference Avoidance: Support sensibility configuration, prevent interference from the outside
-
Convenient Configuration: Support configuring the response time for variable requirements
Specifications
|
Detection Range/Angle (Gesture Recognition) |
0.5 ~ 1 m 80°x 60° |
|
Detection Range/Angle (Human Detection) |
0 ~ 2 m 80°x 40° |
|
Operating Frequency |
24 ~ 24.25 GHz, FCC/CE compliant |
|
Operating Voltage |
5 V |
|
Average Current |
50 mA |
|
Senser SoC |
S3 series (1T1R) |
|
Hardware Size |
28 mm x 24 mm |
|
Interface |
UART, GPIO |

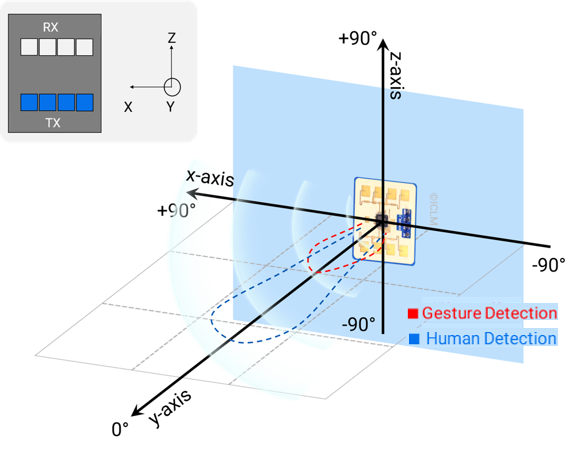

Illustration of Detection Range

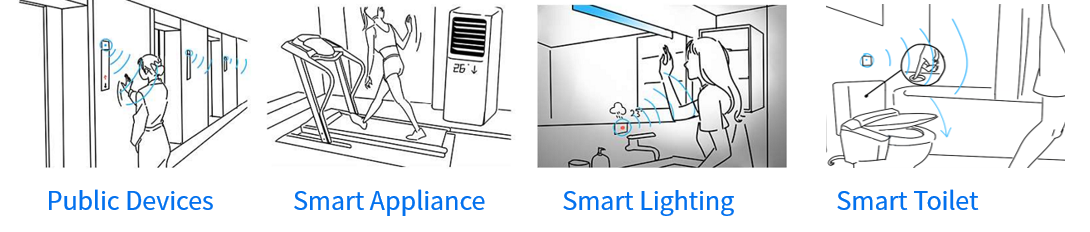

Gesture recognition that is applied to smart toilet application
Support further development
When incorporated with different firmware and algorithms, it is applicable to various scenarios, such as Smart Switch Panels, Security Surveillance, Smart Lighting, and Public Devices.
