XenD101Pro new

Human Presence Detection · Reference Design

中文

Overview

Sensor reference solution based on ICLM mmWave sensor SoC S3KM111L.

Detect targets in specified area using FMCW. Perform high sensitivity human presence detection by integrating radar signal processing and accurate human detection algorithm, can detect moving and motionless human target.


Features

Minimalist size, friendly for product outlook design

Smart sensor with low power consumption

Convenient multi-level parameter adjustment, satisfying variable application scenarios

Accurate detection within specified range, preventing outside interference

Detecting motionless even stationary human target

Top picks for cost-effectiveness


Characteristics

Operating Frequency

24 ~ 24.25 GHz

Operating Voltage

3.3 V (accept voltage ranges from 3.0 V ~ 3.6 V)

Average Current

< 50 mA

Modulation Mode

FMCW

Hardware Size

1.8 cm x 1.5 cm

Environment Temperature

-40 ℃ ~ 85 ℃

Onboard MCU

72 MHz/64 K Flash/8 K RAM/7 Communication Interfaces

Interface

VCC, GND, TX, RX, I/O

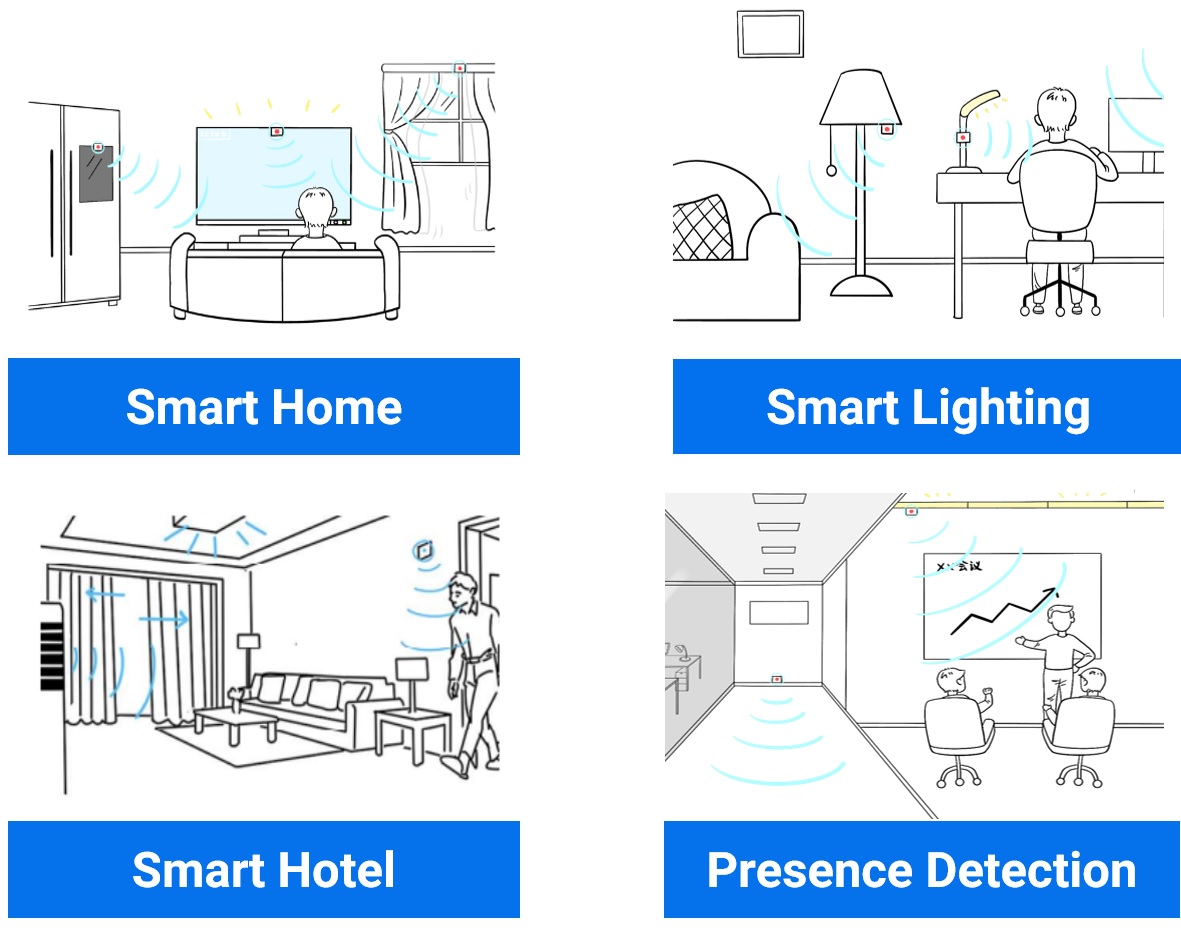

Target Application

Human presence detection (0 ~ 5 m, detection area adjustable)

Installation Method

Top Mounted, Wall Mounted

* In accordance with international spectrum regulatory requirements, no frequency interference problem.


Illustration of Detection Range



Design

  • All
  • GUI
title category version size time action
GUI_XenD101ProHPS01 new GUI V1.0.0.4 4.2 MB 20220705 Buy
title category version size time action
GUI_XenD101ProHPS01 new GUI V1.0.0.4 4.2 MB 20220705 Buy

Document

  • All
  • Introduction
  • User Manual
  • PCB
  • Schematics
title category version size time action
XenD101Pro生命存在感应参考设计 new Introduction 2022.11 version 2.0 MB 20221121 Download
用户手册_XenD101ProHPS01 new User Manual Rev.1.6.1 2.8 MB 20221108 Buy
PCB_XenD101Pro new PCB V1.0 969.8 KB 20220705 Buy
Schematics_XenD101Pro new Schematics V2.0 201.3 KB 20220705 Buy
title category version size time action
XenD101Pro生命存在感应参考设计 new Introduction 2022.11 version 2.0 MB 20221121 Download
title category version size time action
用户手册_XenD101ProHPS01 new User Manual Rev.1.6.1 2.8 MB 20221108 Buy
title category version size time action
PCB_XenD101Pro new PCB V1.0 969.8 KB 20220705 Buy
title category version size time action
Schematics_XenD101Pro new Schematics V2.0 201.3 KB 20220705 Buy
